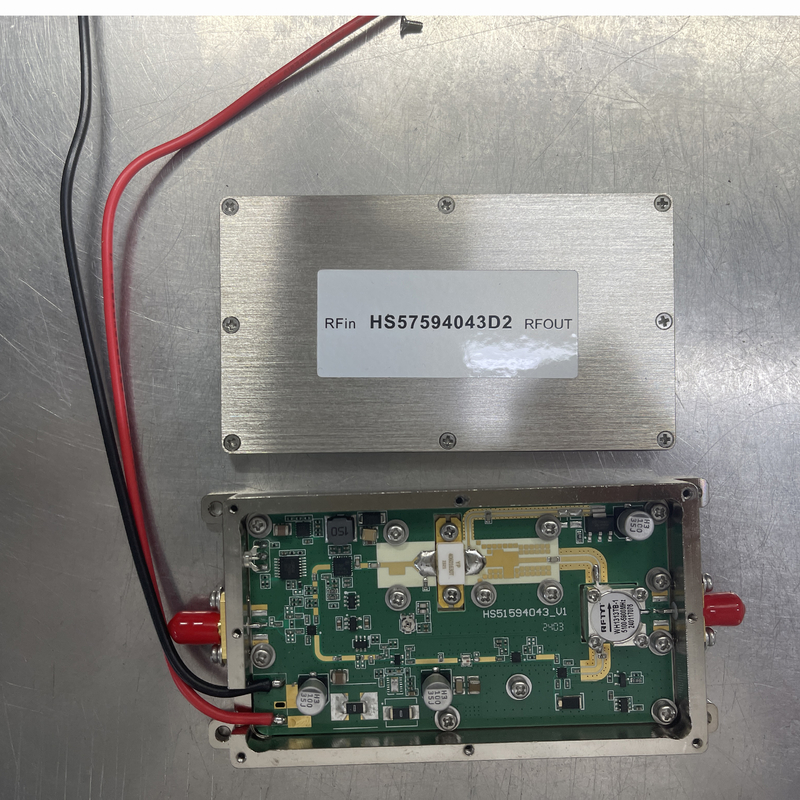

20W 5.8GHz Bidirectional Power Amplifier with IEEE802.11 n/ac standard

Name: 20W 5.8GHz Bidirectional Power Amplifier with IEEE802.11 n/ac standard
Brand: Zhongshi Zhihui Technology (suzhou) Co., Ltd.
SKU: HS57594043D2
Price: 319 USD
Availability: InStock

Product Details

Place of Origin: Suzhou, China

Brand Name: SZHUASHI

Model Number: HS57594043D2

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: 319USD each

Packaging Details: Carton

Delivery Time: 2-5 working days

Payment Terms: T/T

Supply Ability: 1000000PCS/ Year

Get Best Price

Product Details

Product Description

Highlight:

20W 5.8GHz Bidirectional Power Amplifier with IEEE802.11 n/ac standard

20W 5.8GHz Bidirectional Power Amplifier with IEEE802.11 n/ac standard

Description

This product is a bi-directional power amplifier specially developed for 5.8GHz band and conforms to the IEEE802.11 n/ac standard. The product is matched with frequency expansion technologies such as direct sequence (DSSS) and orthogonal frequency division multiplexing (OFDM). Time Division Duplex (TDD) fast microwave detection technology and linear power amplifier technology are adopted to greatly expand the radio frequency communication distance while keeping the transmission rate of 802.11 n/ac wireless equipment unchanged.

Product characteristics

◼ Working frequency band: 5725~5850MHz

◼ Operating voltage: 28V

◼ Reception gain: 20dB

◼ Transmit gain: 16dB

◼ Input power range: 5~23dBm

◼ Output power (P1dB): 43dBm (20W)

◼ EVM:5%@36dBm 802.11n OFDM 64QAM BW 20MHz

◼ Working current: 900mA@Pout 36dBm 28V

◼ Noise figure: ≤ 3.8dB

◼ Transmission delay: ≤ 1 μ s

◼ Working temperature: -20 ℃ ~ 60 ℃

Applications

◼ Wireless LAN 802.11 n /ac Access, Clinet

◼ 5.8GHz WLAN base station

◼ 5.8GHz WLAN bridge

◼ Drone, Aeromodelling, etc.

Specifications

◼ Size:118*59*17.5mm

◼ RF interface: SMA external thread and internal needle

◼ Power Supply port: 6.0*2.0mm DC

◼ Material:Aluminum

◼ Net Weight:217.5g
