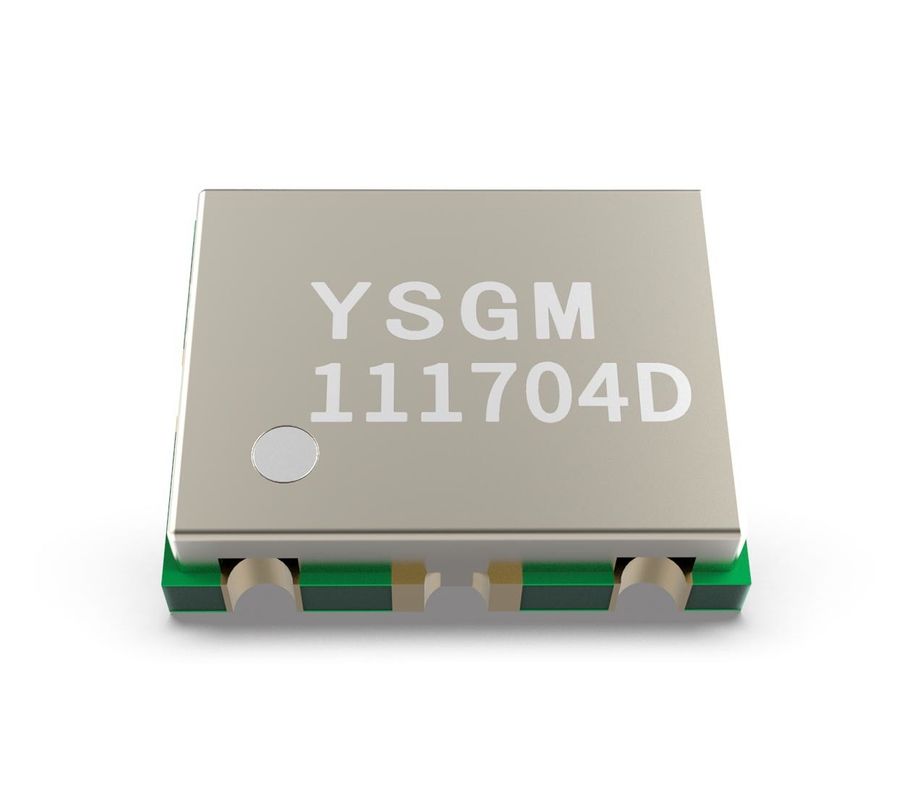

Highly Integrated 110-170MHz Current Controlled Oscillator Coaxial Resonator Oscillator

Name: Highly Integrated 110-170MHz Current Controlled Oscillator Coaxial Resonator Oscillator
Brand: Zhongshi Zhihui Technology (suzhou) Co., Ltd.
SKU: YSGM111704D
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: RFint

Model Number: YSGM111704D

Payment & Shipping Terms

Minimum Order Quantity: 2 pieces

Price: Prices are negotiable

Packaging Details: Opp bag

Delivery Time: 2-10days

Payment Terms: T/T,Western Union,MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Highly Integrated Coaxial Resonator Oscillator, Highly Integrated Current Controlled Oscillator, 170MHz Current Controlled Oscillator


Features:	VCO	Specification:	Standard
Packaging Type:	Opp Bag	Application:	110-170MHz
Package / Case:	Standard	Series:	VCO
Size / Dimension:	7mm9mm2mm	Description:	High Integration Voltage Controlled Oscillator
Manufacturing Date Code:	Other	Nominal Tuning Frequency Band:	110 ~ 170MHz
Output Power:	≥3dBm	Power Supply Voltage (VCC):	3V ~ 6V
Working Current:	12mA(VCC=5V)	Universal Package Size:	7mm9mm2mm

Features:	VCO
Specification:	Standard
Packaging Type:	Opp Bag
Application:	110-170MHz
Package / Case:	Standard
Series:	VCO
Size / Dimension:	7mm9mm2mm
Description:	High Integration Voltage Controlled Oscillator
Manufacturing Date Code:	Other
Nominal Tuning Frequency Band:	110 ~ 170MHz
Output Power:	≥3dBm
Power Supply Voltage (VCC):	3V ~ 6V
Working Current:	12mA(VCC=5V)
Universal Package Size:	7mm9mm2mm

Highly Integrated 110-170MHz Current Controlled Oscillator Coaxial Resonator Oscillator

Highly integrated 110-170MHz 3dBm VCO YSGM111704D Voltage Controlled Oscillator Standard Package

Product Description

The YSGM 111704D is a highly integrated, standard package broadband voltage-controlled oscillator (VCO) product. The improved Colpitts oscillation circuit structure is adopted and a buffer buffer is integrated, which has the advantages of stable oscillation, good isolation and high output power. Compatible with working voltages in the range of 3~6V, meeting the needs of different systems; the tuning voltage range is 0-5V, with high tuning sensitivity. Optimize in-band flatness and high-order harmonic suppression, and the output terminal is directly connected to the 50Ω RF line.

Specification

item	value
Place of Origin	China
	Jiangsu
Brand Name	SZHUASHI
Model Number	YSGM111704D
Specification	Standard
Packaging Type	opp bag
Application	110-170MHz
Package / Case	Standard
Series	VCO
Features	VCO
Size / Dimension	7mm9mm2mm
Description	High integration Voltage Controlled Oscillator
Manufacturing Date Code	Other
Nominal tuning frequency band	110 ~ 170MHz
Output power	≥3dBm
Power supply voltage (VCC)	3V ~ 6V
Working current	12mA(VCC=5V)
Universal package size	7mm9mm2mm

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;

Always final Inspection before shipment;

1 year warranty for our products.

3.what can you buy from us?

Signal Booster, VCO,Sweep signal source, Power Amplifier, Gain Block and so on
