280-380MHz 9dBm Coaxial Resonator Oscillator Standard Features Customized

Name: 280-380MHz 9dBm Coaxial Resonator Oscillator Standard Features Customized
Brand: Zhongshi Zhihui Technology (suzhou) Co., Ltd.
SKU: YSGM030408
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: RFint

Model Number: YSGM030408

Payment & Shipping Terms

Price: Prices are negotiable

Packaging Details: Opp bag

Delivery Time: 2-10days

Payment Terms: T/T,Western Union,MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                9dBm Voltage Controlled Oscillator, 9dBm coaxial resonator oscillator, 280MHz coaxial resonator oscillator


Features:	Standard	Specification:	Standard
Packaging Type:	Opp Bag	Application:	280-380MHz
Package / Case:	Standard	Series:	VCO
Size / Dimension:	7mm9mm2mm	Description:	Standard Voltage Controlled Oscillator
Output Power:	≥9dBm	Supply Voltage:	3V~6V
Working Current:	12mA

Features:	Standard
Specification:	Standard
Packaging Type:	Opp Bag
Application:	280-380MHz
Package / Case:	Standard
Series:	VCO
Size / Dimension:	7mm9mm2mm
Description:	Standard Voltage Controlled Oscillator
Output Power:	≥9dBm
Supply Voltage:	3V~6V
Working Current:	12mA

280-380MHz 9dBm Coaxial Resonator Oscillator Standard Features Customized

Innotion 100% New VCO 280-380MHz 9dBm Voltage Controlled Oscillator Standard Features for Customized

Product Description

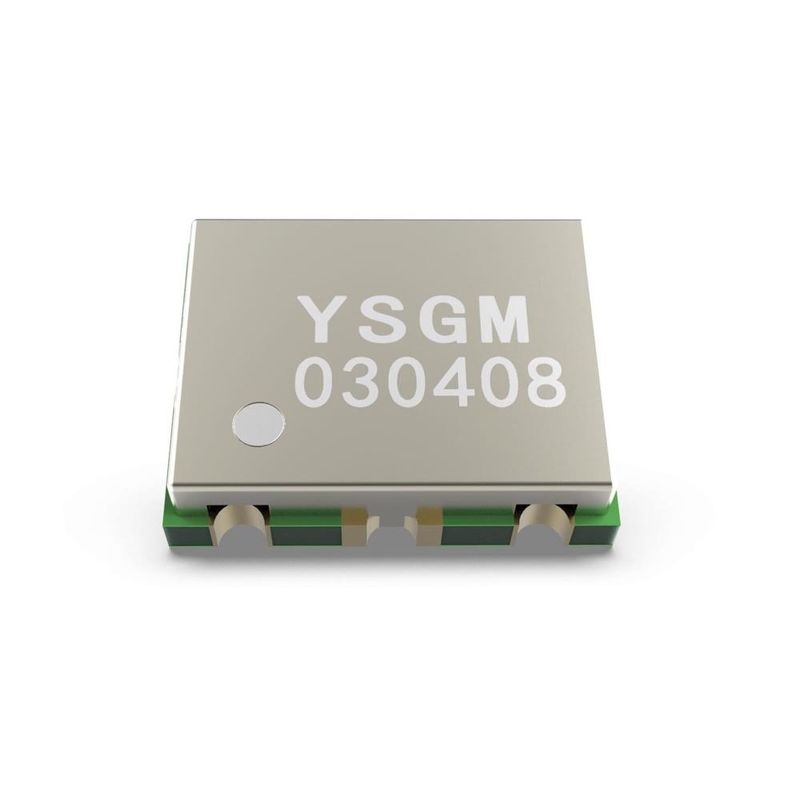

YSGM030408D is a highly integrated, standard packaged broadband voltage-controlled oscillator (VCO) product.The improved Colpitts oscillation circuit structure and integrated buffer are adopted, which has the advantages of stable oscillation, good isolation and high output power.

Nominal tuning frequency band	280 ~ 380MHz@VT=0V~5V
Output power	≥9dBm(VCC=5V)
In-band flatness (BW≤200MHz)	±0.5dB
Power supply voltage (VCC)	3V ~ 6V
Working current	12mA
Second harmonic suppression	≤-20dBc
Third harmonic suppression	≤-30dBc
Radio-frequency output impedance	50Ω
Universal package size	7mm x 9mm x 2mm

280-380MHz 9dBm Coaxial Resonator Oscillator Standard Features Customized 0

280-380MHz 9dBm Coaxial Resonator Oscillator Standard Features Customized 1

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Zhongshi Zhihui Technology (suzhou) Co., Ltd. is located in Suzhou Industrial Park, founded in 2010, the company is mainly engaged in, and can provide customers with wireless communication network coverage solutions of high-tech enterprises. The company implements radio-oriented development strategy based on radio frequency technology, independent research and development and production of bidirectional frequency conversion super WiFi signal amplifier products, radio frequency and microwave voltage controlled oscillator (VCO), sweep signal source, wireless network card information security module and other product lines, has mastered some core technologies in the product field, has a lot of independent intellectual property rights.
