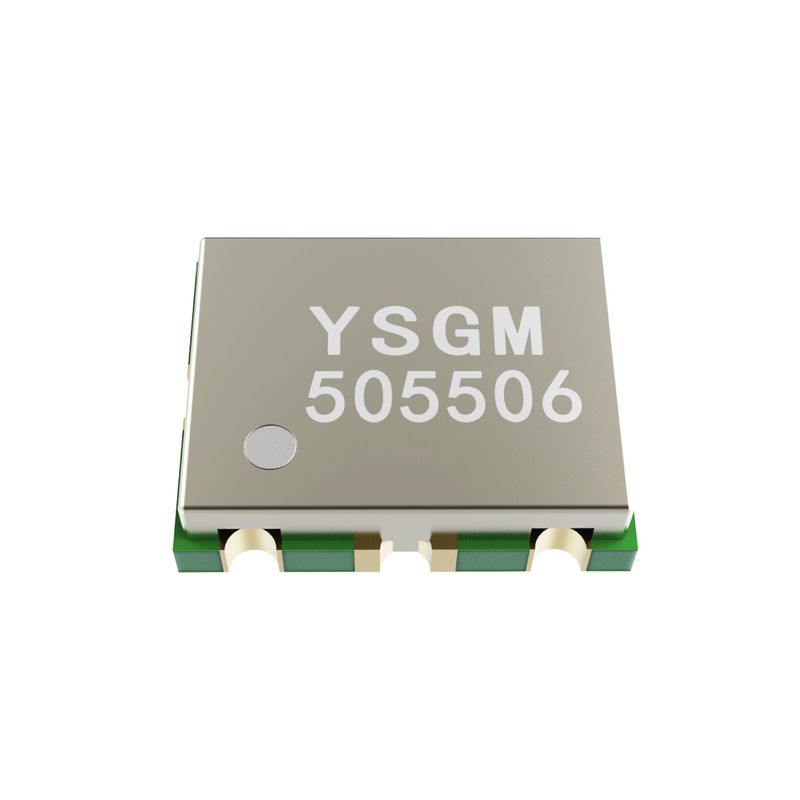

Stable Output Power 8dBm Analog Devices Vco For PCBA Integrated Circuit Chip

Name: Stable Output Power 8dBm Analog Devices Vco For PCBA Integrated Circuit Chip
Brand: Zhongshi Zhihui Technology (suzhou) Co., Ltd.
SKU: YSGM505506
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: RFint

Model Number: YSGM505506

Payment & Shipping Terms

Price: Prices are negotiable

Packaging Details: Opp bag

Delivery Time: 2-10days

Payment Terms: T/T,Western Union,MoneyGram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Stable Output Power Analog Devices Vco, Stable Output Power coaxial resonator oscillator, 8dBm  Analog Devices Vco


Features:	High Output Power	Specification:	Standard
Packaging Type:	Opp Bag	Application:	4800-5600MHz
Package / Case:	Standard	Series:	VCO
Size / Dimension:	7mm9mm2mm	Description:	Standard Voltage Controlled Oscillator
Manufacturing Date Code:	Other	Product Name:	Voltage Controlled Oscillator
The Nominal Tuned Frequency Band:	4950~5350MHz@VT=0.5V~4.5V	Output Power:	≥8dBm @VCC=5V
Sypply Voltage:	3V~9V	Working Current:	15mA~30mA

Features:	High Output Power
Specification:	Standard
Packaging Type:	Opp Bag
Application:	4800-5600MHz
Package / Case:	Standard
Series:	VCO
Size / Dimension:	7mm9mm2mm
Description:	Standard Voltage Controlled Oscillator
Manufacturing Date Code:	Other
Product Name:	Voltage Controlled Oscillator
The Nominal Tuned Frequency Band:	4950~5350MHz@VT=0.5V~4.5V
Output Power:	≥8dBm @VCC=5V
Sypply Voltage:	3V~9V
Working Current:	15mA~30mA

Stable Output Power 8dBm Analog Devices Vco For PCBA Integrated Circuit Chip

Stable Output Power 8dBm VCC 5V VCO 4800-5600MHz Voltage Controlled Oscillator for PCBA Integrated Circuit Chip

Product Description

YSGM556006 is a highly integrated, standard package size VCO with two-stage transistor Cascade structure, low working current, high output power and good isolation.
This VCO uses a new high-frequency oscillation circuit structure, high-precision varactor diode and high cut-off frequency radio frequency Triode to ensure the stability of the starting waveform and good consistency of the oscillation frequency band.
The system is supplied by 5V standard voltage, and the tuning voltage can be up to 9V, thus the broadband output can be realized.

Characteristic parameter

Nominal tuning frequency band	4950~5350MHz@VT=0.5V ~ 4.5V
Output power	≥8dBm @VCC=5V
In-band flatness (BW≤200MHz)	±0.5dB
Nominal tuning frequency band	4800~5600MHz@VT=0V ~ 9V
Power supply voltage (VCC)	3V ~ 9V
Working current	15mA~30mA
Second harmonic suppression	≤ -30dBc
Third harmonic suppression	≤ -35dBc
Radio-frequency output impedance	50Ω
Universal package size	7mm x 9mm x 2mm

Stable Output Power 8dBm Analog Devices Vco For PCBA Integrated Circuit Chip 0

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Zhongshi Zhihui Technology (suzhou) Co., Ltd. is located in Suzhou Industrial Park, founded in 2010, the company is mainly engaged in, and can provide customers with wireless communication network coverage solutions of high-tech enterprises. The company implements radio-oriented development strategy based on radio frequency technology, independent research and development and production of bidirectional frequency conversion super WiFi signal amplifier products, radio frequency and microwave voltage controlled oscillator (VCO), sweep signal source, wireless network card information security module and other product lines, has mastered some core technologies in the product field, has a lot of independent intellectual property rights.

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;

Always final Inspection before shipment;

1 year warranty for our products.

3.what can you buy from us?
Signal Booster, VCO, Anti Drone Jammer Module, Power Amplifier, Gain Block and so on
